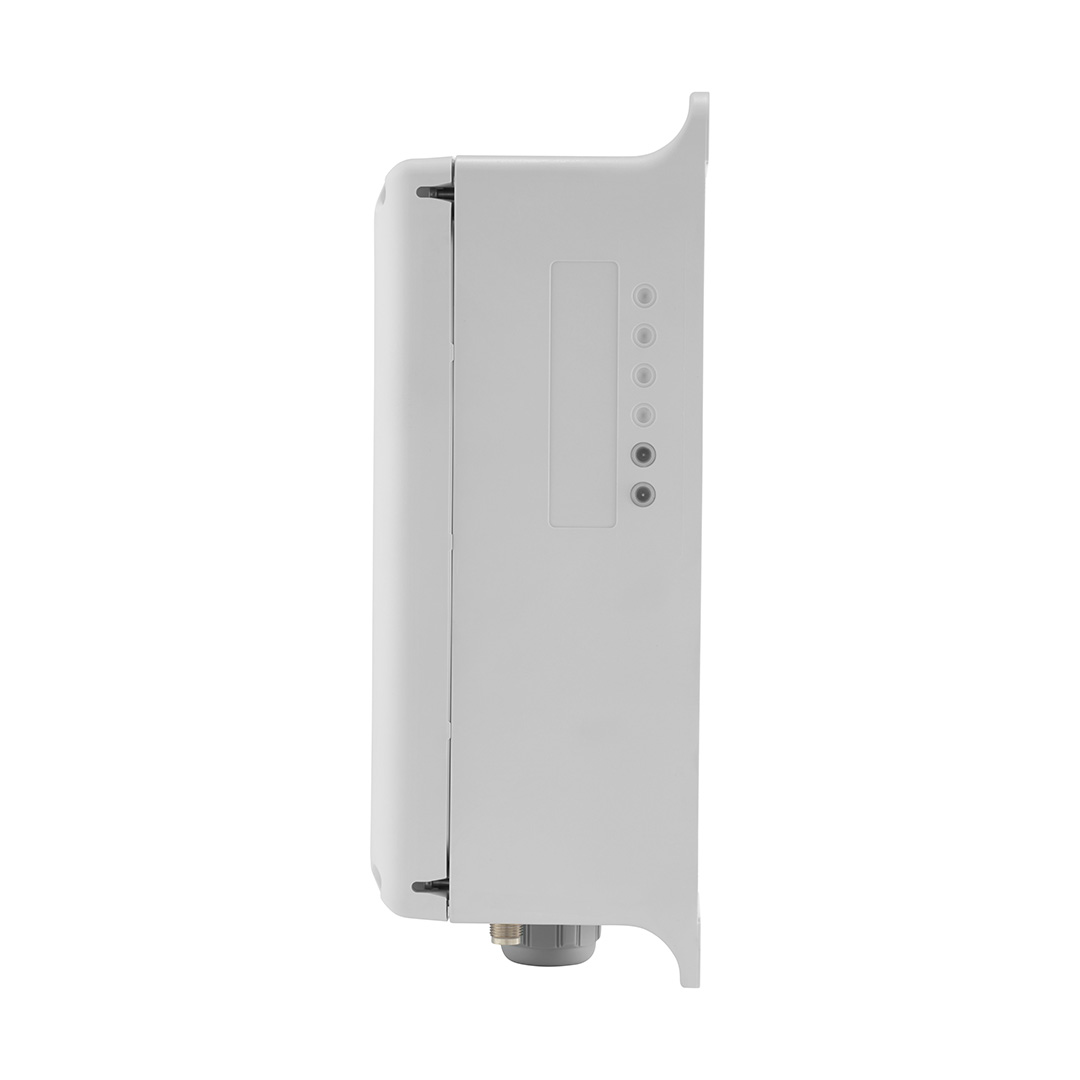

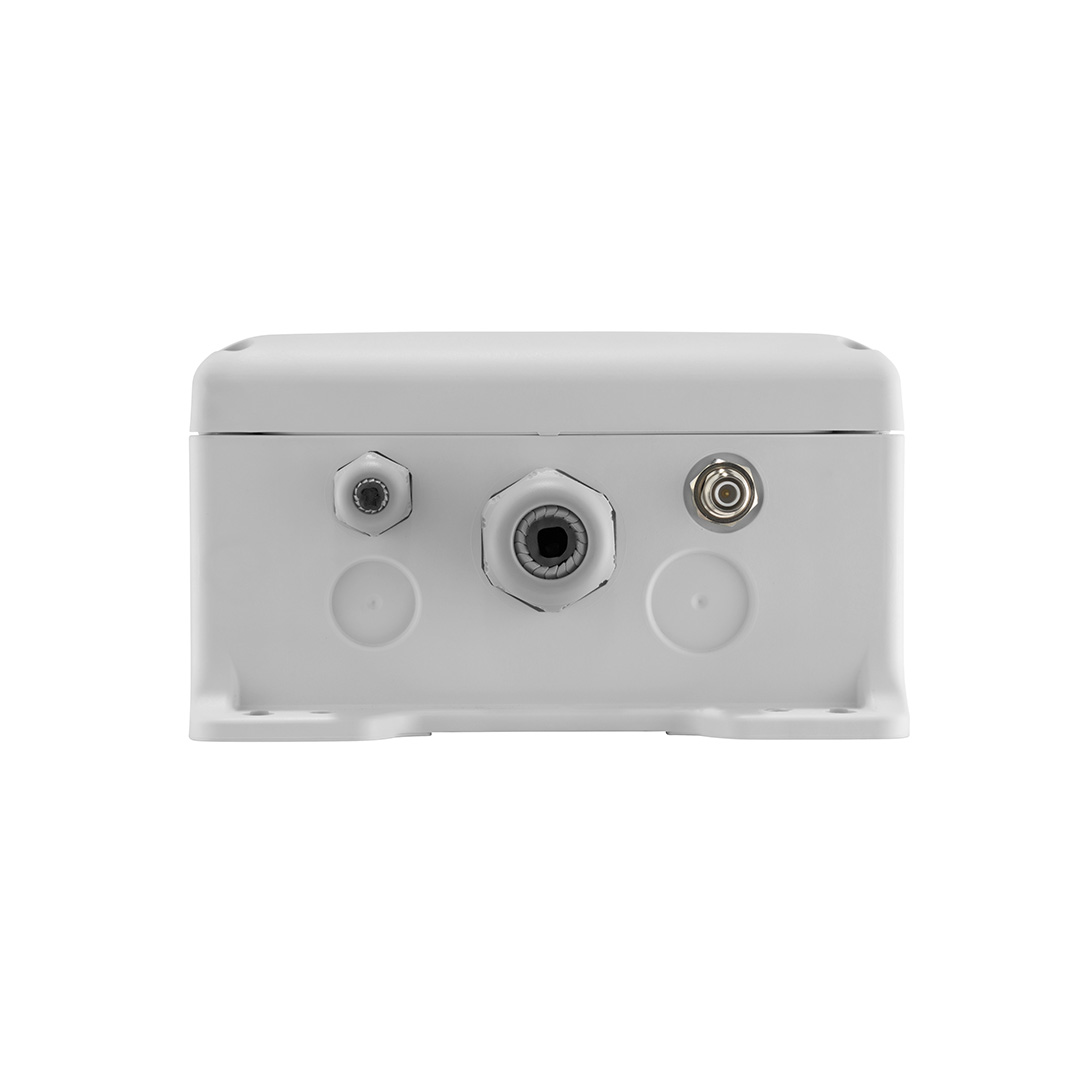

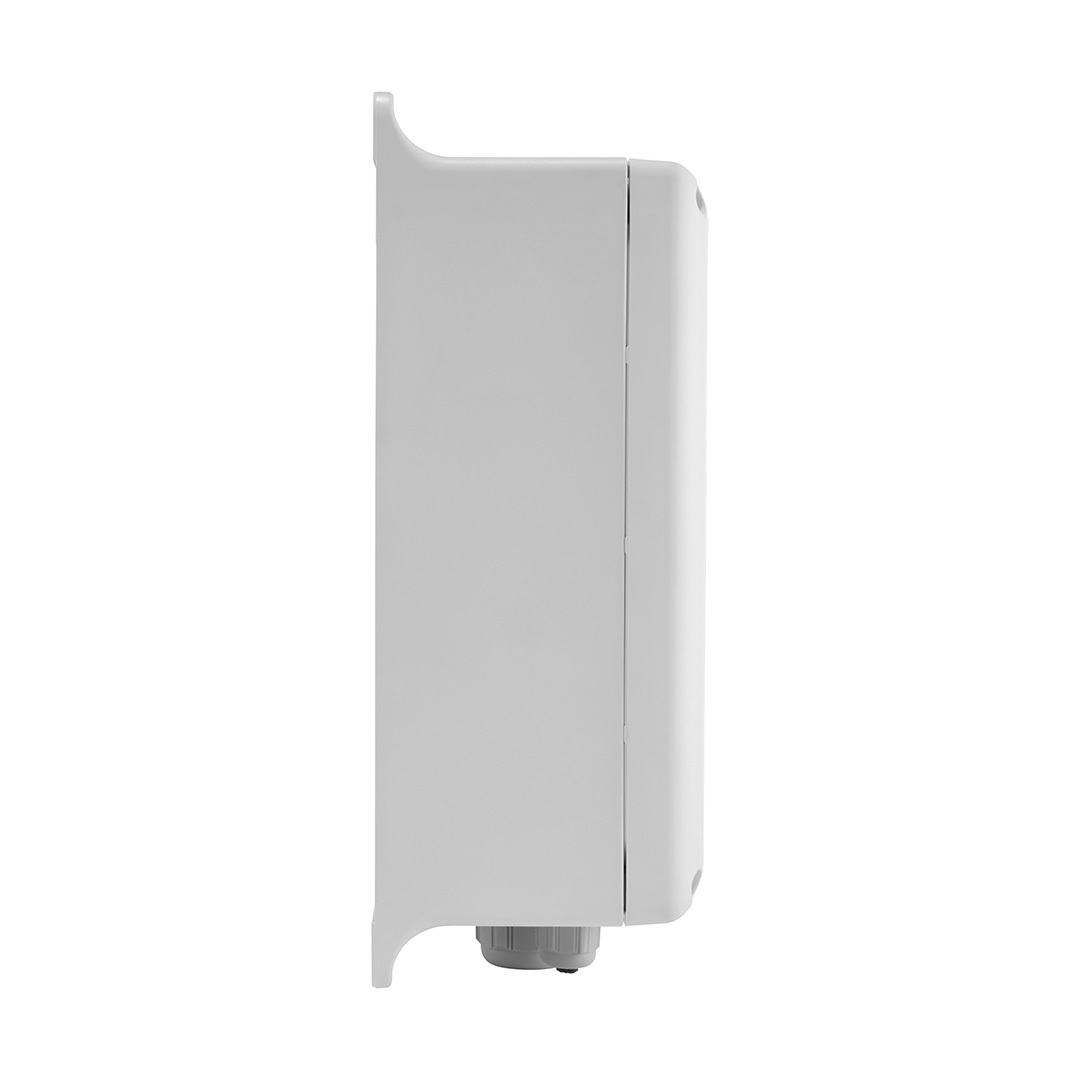

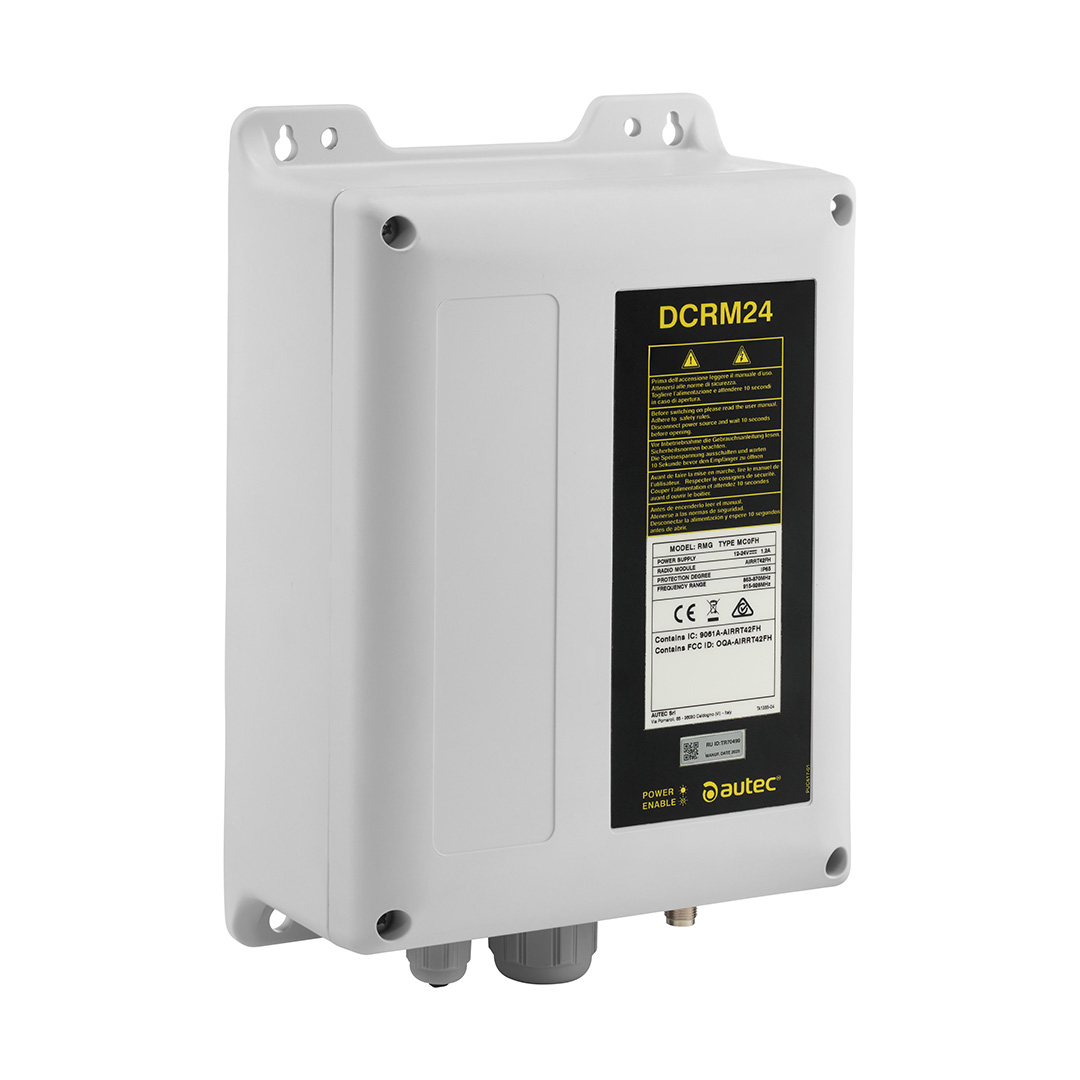

DCRM24
Receiving unit with DC power supply. With 21 programmable MOSFET digital outputs + 2 relays + START and STOP, internal antenna standard or optional external antenna, 8 inputs for Data Feedback. 2 expansion slots are available for programmable relay boards, voltage/current analog output boards, digital and/ or analog input boards, variable resistive output boards, sync boards between receivers (Synchro), RS-232/485, CANopen, Profibus DP, PROFINET, EtherCAT® and EtherNet / IP™ serial communication port boards.
Applications
Technical data
Power supply
12-24 VDC
Antenna
Internal
External optional
External optional
Max number of outputs
39 on/off + START & STOP
Commands rated current
4 A (30 VDC) solid state
10 A (30 VDC) relays
10 A (30 VDC) relays
Rated current of STOP / Safety outputs
6 A (30 VDC) STOP
10 A (30 VDC) Safety
10 A (30 VDC) Safety
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
up to PL d
Protection degree
IP65 (NEMA 4)
Operating and storage temperature
operating: -4 °F ÷ +158 °F
storage: -40 °F ÷ +158 °F
storage: -40 °F ÷ +158 °F
Connecting interfaces
Cable gland
24, 32-pin plug
24, 32-pin plug
Dimensions
7.28 x 11.30 x 4.13 in
Weight
4.9 lb
